Power Rating:167 kVA
Primary Voltage Ratings: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 ,27.6/16 ,14.4,7.2,24.94,34.5or others
Secondary Voltage Ratings: 120-240/240-480/347/600 or others
H.V. Tap Range: ±2×2.5% or others
Connection: Delta/Wye
Type: Dead front/Live front
BIL: 30-150
Standards: CSA, IEEE, DOE, NEMA
Product Introduction
Single-phase pad-mounted transformer is an electrical transformer designed for stepping down higher voltages to a level suitable for single-phase power distribution systems. This type of transformer is typically used in regions where three-phase power is not available or required, such as rural areas or for specific industrial applications where single-phase power is sufficient.
Yawei's pad-mounted transformers are made in power ratings up to 167 KVA.High voltage up to 34.5 KV.
Yawei's pad mounted transformer is designed and tested in accordance with standards including IEC60076,ANSI,CSA, IEEE c.57, and DOE as applicable.
The pad mounted transformers are oil-filled and have a tamper-resistant design. Widely used in residential areas, commercial centers, stations and other places, suitable for outdoor installation without additional protective housing
Transformer technical specification
|
Single Phase Pad Mounted Transformer |
||||
|
Rated Power(KVA) |
High Voltage(KV) |
Low voltage(V) |
Loss(W) |
|
|
No-load loss(W) |
On-load loss(W) |
|||
|
15KVA |
24.94/14.4kv 12.47/7.2kv 34.5kv 19.92lv 13.8kv 13.2kv Or others |
120-240V 240-480V 347V 600V |
50 |
195 |
|
25KVA |
80 |
290 |
||
|
37.5KVA |
105 |
360 |
||
|
50KVA |
135 |
500 |
||
|
75KVA |
190 |
650 |
||
|
100KVA |
210 |
850 |
||
|
167KVA |
350 |
1410 |
||
Option Accessories
− Multiple voltages or taps
− Externally-operable multiple voltage or tap changer switches for safe operation
− Stainless steel tank, tank bottom, sill,door,and/or hardware
− Service entrance in sill
− Various spades and terminals available for secondary bushings
− Various other designations available,e.g.,kva,voltages, fuse number
− High-voltage bushing inserts
− Ground connectors
− One piece high-voltage bushingso EnvirotempTM FR3TM fluid
− Loadbreak switches
− Drain/sampling valve
− Pressure vacuum gauge
− Liquid level gauge
− Temperature gauge
− Canadian Standards Association(CSA)and Consumer
- Electronics Association (CEA) designsltage bushing
Customer feedback
Certificates
1.Quality management system GB/T 19001-2016 ISO 9001: 2015
The operation of the whole YAWEI system is strictly controlled and managed. This ensures the quality of products and material in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.

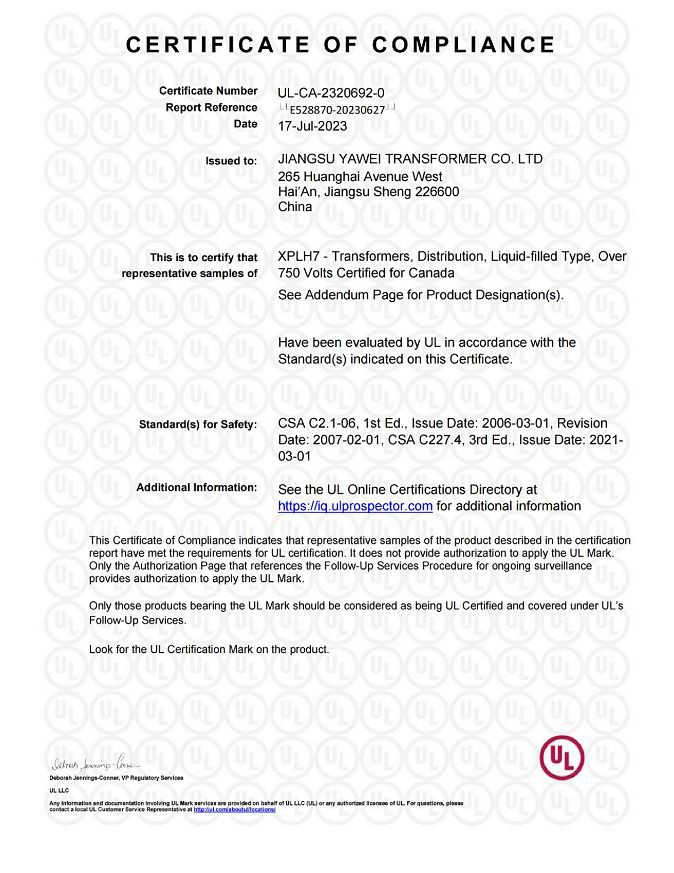

2.CERTIFICATEOFCOMPLIANCE of UL and CUL
YaWei pad mounted transformer have been evaluated by UL in accordance with the U.S and Canada Standard(s). Our transformer certified by UL based on Canadian standards (CSA standards) .
3.Accreditation certificate CE
Standard: EN 60076-1:2011.EN 60076-2:2011EN 60076-14:2013 confirms that YAWEI technical quality meets the requirements of all specific international standards for testing and calibration laboratories. All YAWEI products are fully tested in a qualified testing room before leaving the factory, ensuring stable quality and providing absolute peace of mind for customers.
|
Single Phase Pad Mounted Transformer |
||||
|
Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (V) |
Loss (w) |
|
|
No-load Loss (W) |
On-load Loss (W) |
|||
|
15KVA |
24.94kV/14.4kV 12.47kV/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others |
120-240V 240-480V 347V 600V |
50 |
195 |
|
25KVA |
80 |
290 |
||
|
37.5KVA |
105 |
360 |
||
|
50KVA |
135 |
500 |
||
|
75KVA |
190 |
650 |
||
|
100KVA |
210 |
850 |
||
|
167KVA |
350 |
1410 |
||
