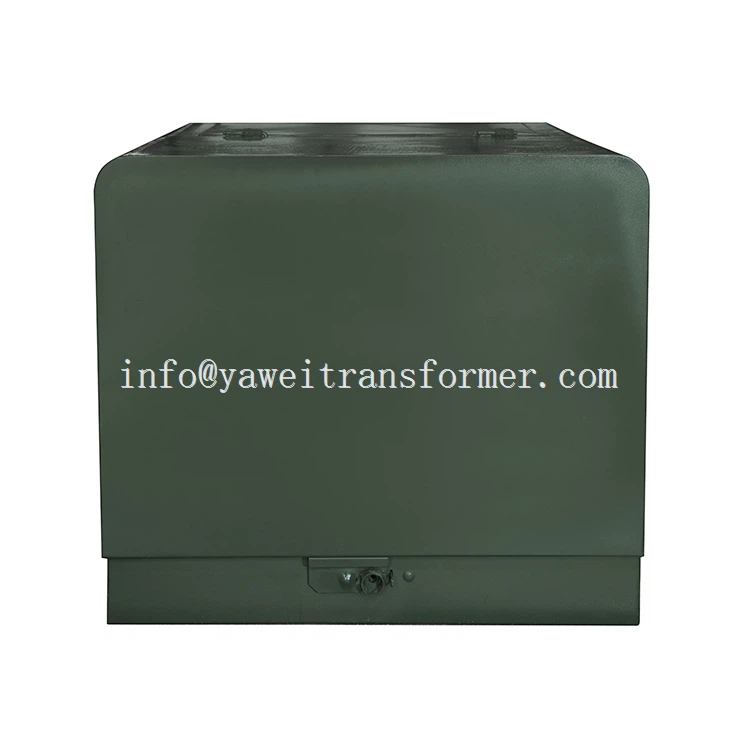

25 kVA Single Phase Pad Mounted Transformer

Power Rating: 25 kVA

Primary Voltage Ratings: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 ,27.6/16, 14.4/7.2 or others

Secondary Voltage Ratings: 120-240/240-480/347/600 or others

H.V. TAP RANGE: ±2×2.5% or others

CONNECTION TYPE: Delta/Wye

TYPE: Dead front/Live front

BIL: 30-150

Standards: CSA IEEE NEMA DOE

Single-phase pad-mounted transformers are compact, self-contained electrical devices primarily used in residential and light commercial settings. Their primary application is to step down the high-voltage electricity supplied by the utility company to a lower voltage suitable for home or small business use.

Yawei's pad-mounted transformers are made in power ratings up to 167 KVA.High voltage up to 34.5 KV.

Yawei's pad mounted transformer is designed and tested in accordance with standards including IEC60076,ANSI,CSA, IEEE c.57, and DOE as applicable.

The pad mounted transformers are oil-filled and have a tamper-resistant design. Widely used in residential areas, commercial centers, stations and other places, suitable for outdoor installation without additional protective housing

− Multiple voltages or taps
− Externally-operable multiple voltage or tap changer
switches for safe operation
− Stainless steel tank, tank bottom, sill,door,and/or hardware
− Service entrance in sill
− Various spades and terminals available for secondary bushings
− Various other designations available,e.g.,kva,voltages, fuse number
− High-voltage bushing inserts

− Ground connectors
− One piece high-voltage bushingso EnvirotempTM FR3TM fluid
− Loadbreak switches
− Drain/sampling valve
− Pressure vacuum gauge
− Liquid level gauge
− Temperature gauge
− Canadian Standards Association(CSA)and Consumer
- Electronics Association (CEA) designsltage bushing

Safety and Security: These transformers are typically enclosed in tamper-proof, lockable
metal cabinets. This design helps ensure safety, reducing the risk of accidental contact with live electrical parts.
Ease of Maintenance: Their design allows for easy access for maintenance and repair work. Utility workers can quickly open the cabinet to perform necessary tasks.
Voltage Regulation: They play a crucial role in voltage regulation, ensuring that the electricity supplied to homes and businesses is within the required voltage range.
Energy Distribution: These transformers are a critical part of the electrical distribution network, ensuring that electricity is
effectively and safely distributed from the power grid to the end-users.
Customization: They can be customized based on specific needs, such as varying power capacities, to cater to the requirements of different neighborhoods or facilities.
Reliability and Durability: They are built to be reliable and durable, often lasting many years with minimal maintenance, which is crucial for uninterrupted power supply. These transformers are essential components in the electrical distribution network, playing a key role in ensuring that electricity is safely and efficiently delivered to end-users.

1.Quality management system GB/T 19001-2016 ISO 9001: 2015

The operation of the whole YAWEI system is strictly controlled and managed. This ensures the quality of products and material in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.

2.CERTIFICATEOFCOMPLIANCE of UL and CUL

YaWei pad mounted transformer have been evaluated by UL in accordance with the U.S and Canada Standard(s). Our transformer certified by UL based on Canadian standards (CSA standards) .

3.Accreditation certificate CE

Standard: EN 60076-1:2011.EN 60076-2:2011EN 60076-14:2013 confirms that YAWEI technical quality meets the requirements of all specific international standards for testing and calibration laboratories. All YAWEI products are fully tested in a qualified testing room before leaving the factory, ensuring stable quality and providing absolute peace of mind for customers.
