Application Range of YB-PRE Series pad-mounted Substation (European Style pad mounted transformer)
Suitable for unmanned substations with a voltage level of 35KV and below, and main transformer capacity of 5000KVA and below. It is widely used in urban industrial substations, 10KV ring network systems, rural grid 35KV substations, and similar situations.
Product Introduction
The main functions of the YB-PRE Series pad-mounted substation, also known as the European Style Pad Mounted Transformer, include:
- Power Transformation: The substation is responsible for stepping down high voltage from the transmission network to lower voltages suitable for distribution to consumers.
- Distribution: It manages the distribution of electricity to various consumers or loads within a specified area.
- Transmission: The substation plays a role in the transmission of electricity from the main power grid to local distribution networks.
- Metering: It includes metering systems to measure the amount of electricity supplied to different consumers.
- Compensation: The substation may include equipment for power factor correction or reactive power compensation to improve the efficiency of the electrical supply.
- Control Systems: It incorporates control systems for monitoring and managing the operation of the substation and the distribution network.
- Protection Systems: The substation is equipped with protective devices and systems to safeguard the electrical equipment from faults and damage.
- Communication Systems: It may include communication systems for remote monitoring, control, and data exchange with the main control center or other substations.
These functions are integral to ensuring a reliable and efficient supply of electricity to end users while maintaining the integrity and stability of the power grid.
Quality Standards Of Product
1.Quality management system GB/T 19001-2016 ISO 9001: 2015
The operation of the whole YAWEI system is strictly controlled and managed. This ensures the quality of products and material in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.
2.CERTIFICATEOFCOMPLIANCE of UL and CUL
YaWei pad mounted transformer have been evaluated by UL in accordance with the U.S and Canada Standard(s). Our transformer certified by UL based on Canadian standards (CSA standards) .
3.Accreditation certificate CE
Standard: EN 60076-1:2011.EN 60076-2:2011EN 60076-14:2013 confirms that YAWEI technical quality meets the requirements of all specific international standards for testing and calibration laboratories. All YAWEI products are fully tested in a qualified testing room before leaving the factory, ensuring stable quality and providing absolute peace of mind for customers.
|

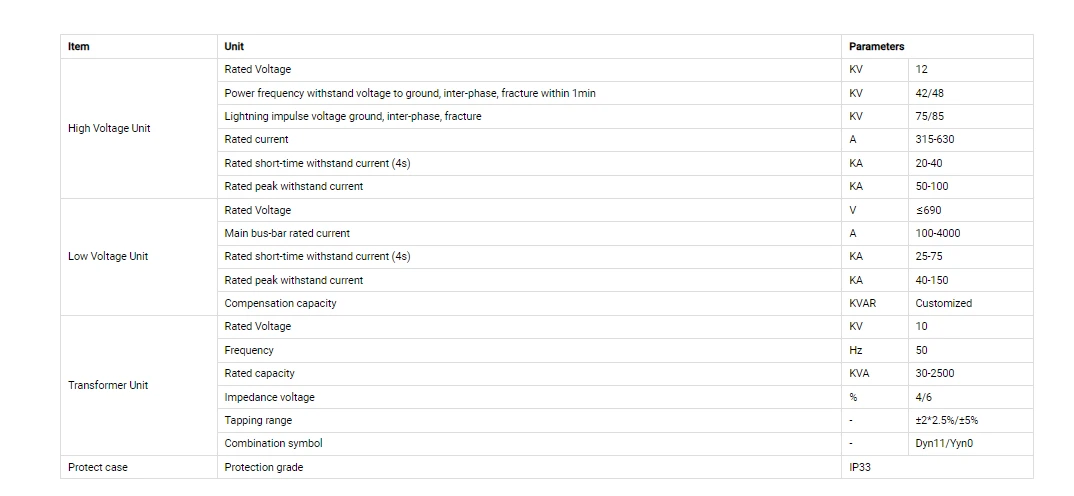

Item |
Unit |
Parameters |
|
|
High Voltage Unit |
Rated Voltage |
KV |
12 |
|
Power frequency withstand voltage to ground, inter-phase, fracture within 1min |
KV |
42/48 |
|
|
Lightning impulse voltage ground, inter-phase, fracture |
KV |
75/85 |
|
|
Rated current |
A |
315-630 |
|
|
Rated short-time withstand current (4s) |
KA |
20-40 |
|
|
Rated peak withstand current |
KA |
50-100 |
|
|
Low Voltage Unit |
Rated Voltage |
V |
≤690 |
|
Main bus-bar rated current |
A |
100-4000 |
|
|
Rated short-time withstand current (4s) |
KA |
25-75 |
|
|
Rated peak withstand current |
KA |
40-150 |
|
|
Compensation capacity |
KVAR |
Customized |
|
|
Transformer Unit |
Rated Voltage |
KV |
10 |
|
Frequency |
Hz |
50 |
|
|
Rated capacity |
KVA |
30-2500 |
|
|
Impedance voltage |
% |
4/6 |
|
|
Tapping range |
- |
±2*2.5%/±5% |
|
|
Combination symbol |
- |
Dyn11/Yyn0 |
|
|
Protect case |
Protection grade |
IP33 |
|
