Product Introduction

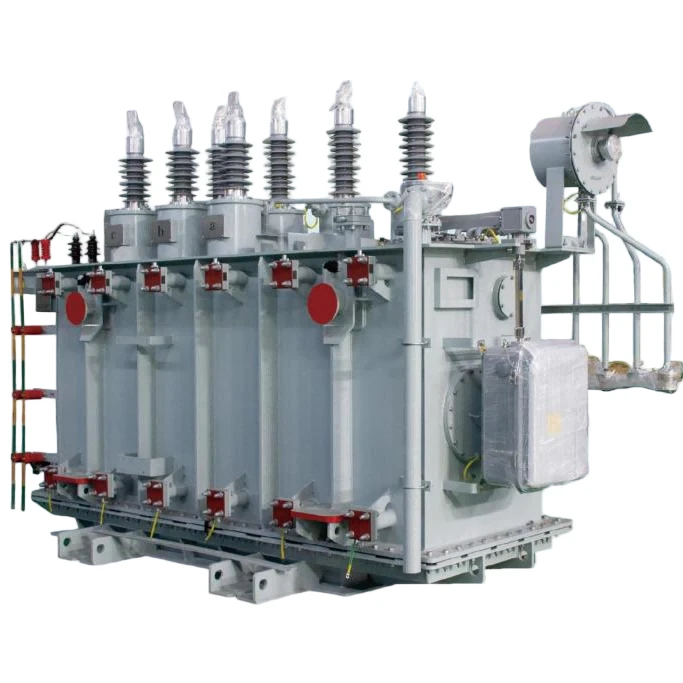

Yawei Transformer's 66kV Oil-immersed Three-phase Double-winding Unexcited Voltage Regulating Power Transformer is a high-performance power transformer designed for reliable voltage conversion and efficient power transmission in medium and high-voltage electrical networks. Combining advanced manufacturing technology, high-quality materials, and optimized structural design, this transformer provides stable operation for substations, industrial facilities, utility grids, renewable energy projects, and large power distribution systems.

The 66kV Oil-immersed Three-phase Double-winding Unexcited Voltage Regulating Power Transformer adopts an oil-immersed cooling structure with excellent insulation performance and heat dissipation capability. Its three-phase double-winding design ensures efficient energy transfer between high-voltage and low-voltage systems, while the unexcited voltage regulating function allows operators to adjust the transformer voltage ratio under no-load conditions to meet different grid voltage requirements.

Built according to international standards such as IEC 60076, this transformer features low losses, high mechanical strength, excellent short-circuit resistance, and long service life, making it an ideal solution for modern power systems.





Key Features of 66kV Oil-immersed Three-phase Double-winding Unexcited Voltage Regulating Power Transformer







1. Reliable Oil-immersed Insulation and Cooling System

The transformer uses high-quality insulating oil as both an electrical insulation medium and a cooling medium. The oil circulation system effectively transfers heat generated by the core and windings to the radiator, ensuring stable temperature performance during continuous operation.

Benefits include:

Excellent insulation strength

Efficient heat dissipation

Improved overload capability

Reduced aging of insulation materials

Longer transformer service life

2. Three-phase Double-winding Structure

The three-phase double-winding configuration provides efficient voltage transformation between the high-voltage side and low-voltage side.

Main advantages:

Feature Benefit
Three-phase design Suitable for industrial and utility power networks
Double-winding structure Efficient power transmission between voltage levels
Optimized magnetic circuit Reduces no-load losses and noise
High-quality copper windings Improves conductivity and reduces load losses

This structure makes the transformer suitable for applications requiring stable and continuous power supply.

3. Unexcited Voltage Regulation Function

The unexcited voltage regulating design allows voltage ratio adjustment when the transformer is disconnected from the power supply. By changing the tap position of the winding, the transformer can compensate for voltage variations in the power network.

Typical applications include:

Substation voltage adjustment

Industrial power supply systems

Regional distribution networks

Renewable energy grid connections

This function helps maintain stable output voltage and improves the reliability of electrical equipment operation.

Technical Advantages

Item Description
Rated Voltage 66kV
Transformer Type Oil-immersed power transformer
Phase Three-phase
Winding Type Double-winding
Voltage Regulation Unexcited voltage regulating
Cooling Method ONAN / ONAF
Insulation Medium Transformer oil
Application Substations, utilities, industrial power systems

Specifications can be customized according to customer requirements



Applications of 66kV Oil-immersed Three-phase Double-winding Unexcited Voltage Regulating Power Transformer





The transformer is widely used in various power infrastructure projects, including:



Utility Grid Substations

It provides reliable voltage conversion between transmission and distribution networks, supporting stable electricity supply for residential and commercial users.

Industrial Power Systems

Industries such as:

Steel plants

Mining operations

Chemical facilities

Manufacturing factories

require dependable transformers for continuous operation and high-power demand.

Renewable Energy Projects

The transformer can be applied in:

Solar power plants

Wind farms

Energy storage systems

to step up or step down voltage and connect renewable energy sources to the electrical grid.

Infrastructure Projects

It is also suitable for:

Transportation systems

Large buildings

Public facilities

Regional power distribution networks



Why Choose Yawei 66kV Oil-immersed Three-phase Double-winding Unexcited Voltage Regulating Power Transformer?


Yawei Transformer provides customized transformer solutions with advanced production capabilities and extensive experience in power equipment manufacturing.

Key advantages include:

High-efficiency transformer design

Strict quality inspection procedures

Reliable insulation and cooling systems

Customized voltage and capacity options

Long operational lifetime

Professional technical support

From design and manufacturing to testing and delivery, Yawei ensures every 66kV Oil-immersed Three-phase Double-winding Unexcited Voltage Regulating Power Transformer meets demanding requirements for safety, efficiency, and reliability.

yawei transformer



Specifications



(kVA)
Rated
capacity
Rated voltage and tapping range Vector
group
(%)
No load
current
(%)
Impedance
voltage
(kW)
No load
losses
(kW)
On load
losses
HV (%)
Tapping range
L V
3150 63
66
69
±5 6.3
6.6
10.5
YNd11 0.70 8 2.2 20.7
4000 0.64 2.6 24.6
5000 0.54 3.1 27.6
6300 ±2×2.5 0.48 9 4.0 30.8
8000 0.48 4.9 36.5
10000 0.45 5.8 43.0
12500 0.45 6.8 51.1
16000 0.42 8.3 62.8
20000 0.42 9.7 76.1
25000 0.38 11.4 90.0
31500 0.35 13.5 108.0
40000 0.35 16.2 126.9
50000 0.32 19.4 150.3
63000 0.29 22.9 178.2
