Hey there! As a supplier of distribution transformers, I often get asked about various components and features of these important pieces of equipment. One question that comes up quite a bit is, "What is the tap changer in a distribution transformer?" Well, let's dive right in and explore this topic together.
First off, let's understand what a distribution transformer does. In simple terms, a distribution transformer is used to step down the high - voltage electricity from the transmission lines to a lower voltage that can be used in homes, businesses, and industries. It's like a bridge between the power grid and our everyday electrical devices.
Now, the tap changer is an essential part of a distribution transformer. Its main job is to adjust the turns ratio of the transformer. You see, the voltage in the power grid can vary for a bunch of reasons. For example, the distance from the power source, the load on the grid, and even the time of day can all affect the voltage. When the input voltage changes, it can lead to problems for the end - users. If the voltage is too high, it can damage electrical appliances; if it's too low, the appliances may not work properly.
The tap changer allows us to change the number of turns in the transformer's winding. By doing this, we can regulate the output voltage of the transformer to keep it within an acceptable range, regardless of the fluctuations in the input voltage. There are two main types of tap changers: on - load tap changers (OLTC) and off - load tap changers (OLTC is pronounced "on - load - tee - see", and it's kind of a mouthful, but bear with me).
On - load tap changers are designed to change the tap position while the transformer is still in operation. This is super handy because it means we can adjust the voltage without having to shut down the transformer, which would cause a power outage for the users. OLTCs use a complex mechanism that involves moving contacts and arc extinguishing devices. They're more expensive and complex than off - load tap changers, but they're also much more practical in situations where a continuous power supply is crucial, like in hospitals, factories, and data centers.
Off - load tap changers, on the other hand, require the transformer to be taken out of service before the tap position can be changed. This is a simpler and cheaper option, but it's not suitable for applications where a constant power supply is needed. It's often used in less critical applications, like in some rural areas or small - scale residential installations.
Let's talk about how the tap changer actually works. Inside the transformer, there are multiple taps on the winding. Each tap represents a different number of turns. When the tap changer moves from one tap to another, it changes the number of turns in the winding that are connected to the circuit. This, in turn, changes the turns ratio of the transformer, which affects the output voltage. For example, if we increase the number of turns in the secondary winding relative to the primary winding, the output voltage will increase; if we decrease the number of turns, the output voltage will decrease.
As a distribution transformer supplier, we offer a wide range of transformers with different tap changer options. For instance, we have the 500KVA 22.9KV Three Phase Step Down Distribution Transformer. This transformer is suitable for medium - sized commercial and industrial applications. It comes with an off - load tap changer, which is a cost - effective solution for areas where the voltage doesn't fluctuate too much.
Another great option is our Delta Star Distribution Transformer. This type of transformer is commonly used in three - phase power systems. It can be equipped with either an on - load or an off - load tap changer, depending on the specific requirements of the customer. The on - load tap changer option is ideal for large - scale industrial plants where a stable power supply is essential.

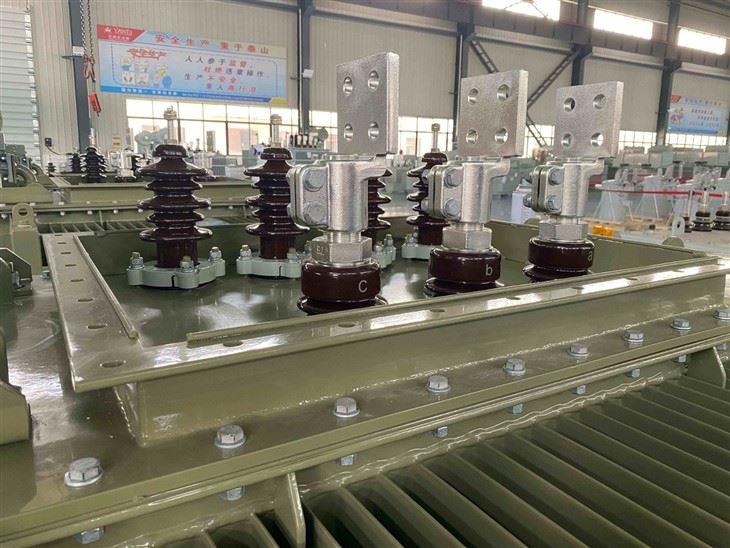

We also have the Yawei S11 1200KVA & 1600KVA Distribution Transformer. These high - capacity transformers are perfect for big commercial complexes and large industrial facilities. They come with advanced on - load tap changers that can quickly and accurately adjust the output voltage to meet the changing needs of the load.
When it comes to choosing the right tap changer for a distribution transformer, there are a few factors to consider. First, you need to think about the nature of the load. If it's a critical load that can't tolerate power outages, an on - load tap changer is the way to go. Second, you should consider the cost. Off - load tap changers are cheaper, but they may not be suitable for all applications. Third, you need to look at the expected voltage fluctuations in the area where the transformer will be installed. If the voltage varies a lot, a more sophisticated tap changer may be required.
In addition to regulating the output voltage, tap changers also play a role in improving the efficiency of the distribution system. By keeping the voltage at an optimal level, we can reduce the energy losses in the transmission and distribution lines. This not only saves energy but also helps to lower the overall cost of electricity for the end - users.
Maintaining the tap changer is also important. Regular inspections and maintenance can help to ensure that the tap changer is working properly and can prevent potential failures. For on - load tap changers, the contacts need to be checked for wear and tear, and the arc extinguishing devices need to be inspected regularly. For off - load tap changers, the mechanical parts need to be lubricated, and the tap positions need to be verified.
As a distribution transformer supplier, we're committed to providing high - quality transformers with reliable tap changers. We have a team of experts who can help you choose the right transformer and tap changer combination for your specific needs. Whether you're a small business owner looking for a cost - effective solution or a large industrial corporation in need of a high - performance transformer, we've got you covered.
If you're interested in learning more about our distribution transformers or have any questions about tap changers, feel free to reach out to us. We're always happy to have a chat and help you find the best solution for your power needs. You can start the conversation by exploring our product pages, and if you see something that catches your eye, we're here to assist you with the procurement process. Let's work together to ensure a stable and efficient power supply for your operations.
References:
- "Power System Analysis and Design" by John J. Grainger and William D. Stevenson
- "Electric Power Distribution Engineering" by Turan Gonen
