Specific Applications of 500kV Oil-Immersed Single-Phase Double-Winding Unexcited Voltage Regulating Power Transformers
Introduction
These 500kV oil-immersed single-phase transformers with off-circuit voltage regulation are the real quiet heroes of the high-voltage world. You don't notice them until you stop and think how much they do to keep electricity moving reliably across huge distances.
They rely on oil for insulation and cooling, use a single-phase design that's a lot easier to ship and set up on site, and keep things simple with just two windings. The unexcited part means you can only tweak the voltage taps when the whole thing is powered down. It might feel a bit old-fashioned, but honestly, it's way more dependable and needs far less babysitting than those on-load tap changers.

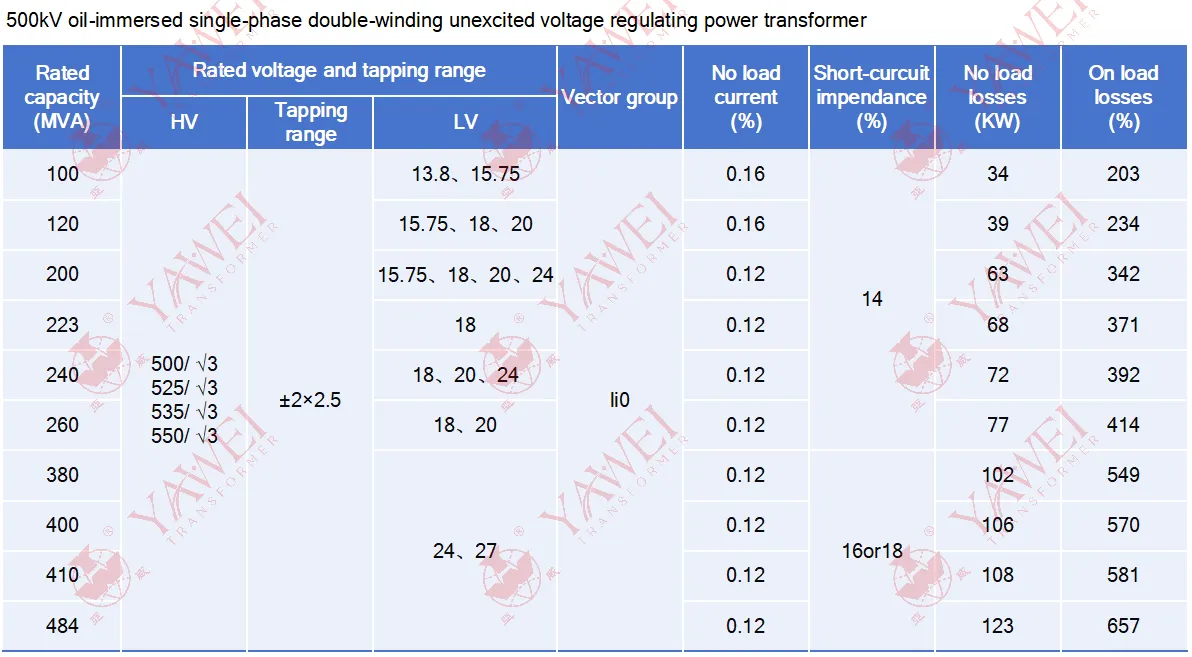

You'll usually run into them rated anywhere from 100 MVA to well over 400 MVA per unit. They're efficient, built like tanks, and tick all the boxes on international standards.
Why These Transformers Are So Well Liked
The appeal comes down to how they balance efficiency with everyday practicality. They keep energy losses surprisingly low, shrug off tough conditions like high altitudes or shaky ground, and the single-phase setup makes hauling them around and installing them way less of a nightmare.
On top of that, ditching the fancy on-load gear keeps the price tag friendlier and boosts long-term reliability. Most of them just keep humming along for 30 years or longer, staying pretty quiet and causing minimal drama.
Where You'll Actually Find Them in Action
1. Long-Distance 500kV Transmission Grids
This is their day-to-day bread and butter. They crank up the voltage from power plants to 500kV so electricity can travel hundreds of kilometers with hardly any losses, then bring it back down near cities and factories. They're basically the backbone of regional and cross-province power networks.
2. Power Plants
Doesn't matter if it's coal, hydro, nuclear, or a massive wind or solar farm - these transformers take the generator output (usually 15–24 kV) and push it straight up to transmission levels. The single-phase style is a nice touch because you can group three together and still have room for easy backups.
3. HVDC Converter Stations
They do important supporting work in HVDC systems, linking up separate grids or sending power over crazy long distances. Their steady AC-side voltage control is what keeps the whole conversion process running smoothly.
4. Heavy Industry
Petrochemical plants, steel mills, and big mining operations count on them for rock-solid, high-capacity power. These units can handle heavy loads that swing around wildly and still stay steady.
5. Renewable Energy Projects
With wind and solar farms getting bigger all the time, these transformers make it straightforward to hook them into the main 500kV grid. They're especially good at smoothing out the natural ups and downs of renewable power.
6. Big City and Regional Substations
In busy load centers they step the voltage down from 500kV to 220kV or 110kV for normal distribution. You'll spot them quietly keeping data centers, hospitals, airports, and growing cities online - places where even a short blackout is a big deal.
How They Perform in Real Life
Out in the field, especially on major national projects in Asia, they've earned a solid reputation. They cope with heavy loading, shrug off short circuits, and keep running smoothly for decades. The off-circuit tap changer is perfect for those planned maintenance windows when everything's already shut down anyway.
Challenges and What's Coming
Nothing's flawless, of course. You still need to keep an eye on the oil with regular tests and make sure surge protection is up to scratch. The good news is that newer versions are adding smarter sensors for remote monitoring and switching to greener ester-based oils to lighten the environmental footprint.
Wrapping It Up
When you step back, these 500kV single-phase oil-immersed transformers with off-circuit regulation are just essential building blocks of today's power systems. Whether they're shifting huge amounts of electricity across borders, helping renewables grow, or keeping heavy industry humming, they get the job done reliably and without drawing much attention.
As electricity demand keeps climbing and grids get more complicated with all the new renewable energy, you can bet we'll be seeing even more of these dependable workhorses in the years ahead.
