What Is The Bay-O-Net Fuse?

Contact now

Bay-O-Net fuse is a kind of fuse commonly applied in electrical systems, especially for protecting transformers and other essential electrical apparatus. This paper discusses the construction, usage, advantages, applications, etc. of Bay-O-Net fuses.

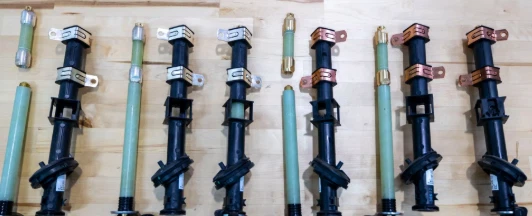

A Bay-O-Net fuse is a kind of cartridge fuse for high-voltage usage. It is known for its distinctive style and easy installation and replacement. Bay-O-Net gets its name from how its base looks like a bayonet, so it gives it a solid connection and works well even in tough places.

Construction

Bay-O - Net fuses normally consist of a couple of separate parts:
Fuse Element: The fuse element is made of high resistance material which melts when too much electricity flows through it and thus breaks the circuit. Material is usually silver/ copper/ other conductive metal:
Insulating Body: Fuse is kept in an insulating body which is made up of ceramic/glass. This insulator also helps in protecting of the fuse. It protects the fuse from any arcing.
Bayonet Base: Bayonet base for fast mounting and secure mounting. It is made of two pins that fit into slots in the fuse box, making a solid connection.
End Caps: End caps are normally made from metal and supply the contacts where the circuit is connected up to.

Operation

The operation of a Bay-O-Net fuse is simple. When normal operation, current runs down fuse element: But if there is a failure such as a short circuit or an overload then the current flowing through it would be more than the fuse's rated value, the fuse element gets heated up and melts. And then also stops the current from running so that it can save your circuit and the other bits and pieces in the circuit.

Current Ratings

The Bay-O-Net fuses come in various current ratings, so they can be used for different things. The particular rating to be used is dictated by the equipment's load and the conditions in which that load will exist. A common rating is usually somewhere from a few amps up to several hundred amps.

Advantages of Bay-O-Net Fuses

Ease of Replacement: Bayonet style so it's easy to replace quick and there is minimal downtime.
Reliability: Bay - O - Net fuses use High voltage and provide overloads and short circuits.
Compact Size: Their small bodies are suitable for confined areas, like within a panel or a box holding a transformer.
Visual Indication: A lot of Bay-O-Net fuses have a sight that tells when the fuse blows, which helps you find problems fast.
Safety: Its electrically insuring body and to be avoided contacting parts from the live, for maintenance safety.

Applications

Bay-O-Net fuses are widely applied, including:
Transformer Protection: They are typically used to protect transformers from overloads and short circuits, ensuring that the equipment has a long life and is dependable.
Industrial Equipment: Bay - O - Net fuses will also be found on many of the industrial applications where you may find motor protection and control circuits.
Distribution Systems: They are used for guarding the electric supply network from overcurrent.
Renewable Energy Systems: Renewable energy is on the rise and so with it, Bay-O-Net fuses are being used in more Solar inverters and Wind turbines systems to protect the electrical components.

Proper Rating Selection: Pick a fuse of the proper current rating for your application. Using a fuse of rating that is too high will offer very limited protection but one that is rated too low may blow for no good reason.
Environment: What environment will the fuse exist? high humidity, extreme temperatures, or exposure to chemicals can impact the fuse's performance and longevity.
Regular Maintenance: It is advised to carry out a routine checkup and testing on Bay-O-Net fuses so as to make sure that they function properly and any blown fuse could be substituted at once.
Compatibility: Use the fuse that suits the fuse holder in electrical system. When the parts do not fit just right, we can have failures or danger.

Bay-O-Nets Fuses is a reliable and efficient method to protect electrical system from overload and short circuit damages: Its unique design makes it easy to replace and is used in high voltage applications and so it is an extremely important component in many industries. When it works, all those great things come out if, but I don't use properly, keep electrical circuits safe and reliable. When technology constantly changes, fuses will always be important for protecting electrical equipment so everything works well.
