What Is kV to V Conversion? Transformer Voltage Explained Simply

Click the image to learn more.

If you've ever worked around transformers, substations, or industrial power systems, you've probably seen voltage ratings written in both kV and V. At first glance, it looks simple enough. But in real electrical systems, the relationship between "kV to V" is more than just moving a decimal point around. It directly affects how transformers are designed, installed, and used every day.

In power engineering, transformers are the equipment that make large-scale voltage conversion possible. Without them, modern electrical grids honestly wouldn't function the way they do today.

So let's break it down in a practical, easy-to-understand way.

The term "kV to V" simply refers to converting kilovolts (kV) into volts (V).

One kilovolt equals 1,000 volts.

Here's the basic relationship:

1 kV=1000 V

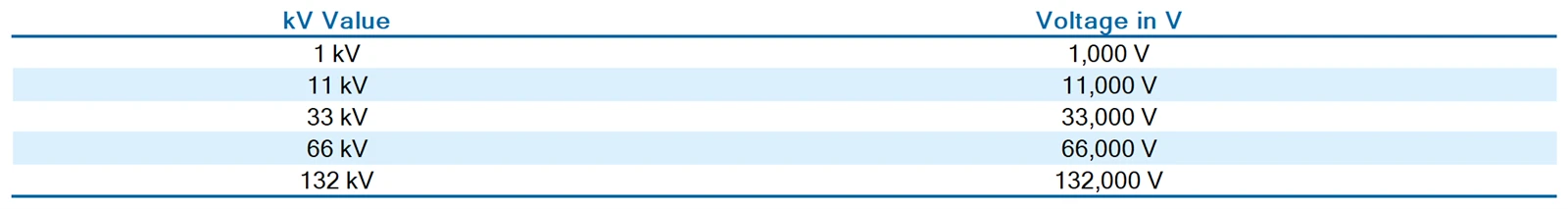

So:

Pretty straightforward, right? Still, these conversions become extremely important when selecting transformers, insulation systems, switchgear, and cable ratings.

And mistakes here? Yeah, they can get expensive fast.

In residential systems, we usually talk about voltage in volts. For example:

120V in some countries

230V or 240V in others

But once voltage levels become large, engineers switch to kilovolts because the numbers are easier to read and manage.

Imagine writing 132,000 volts on every drawing and equipment label. Using 132kV is just cleaner and more practical.

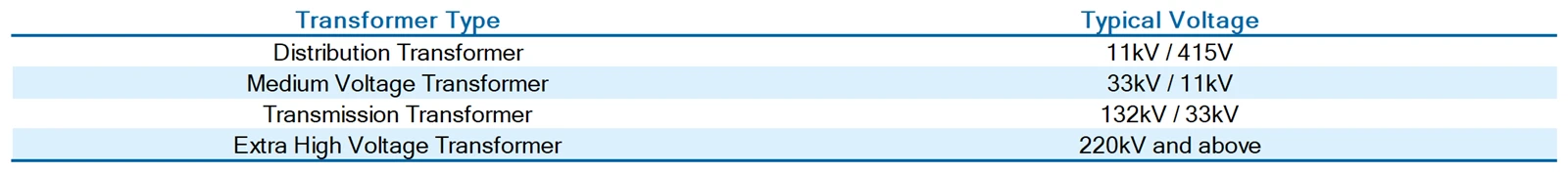

Transformers commonly operate in these ranges:

So when people search for "kV to V," they're often trying to understand transformer voltage ratings or electrical conversion calculations.

A transformer works through electromagnetic induction. Sounds technical, but the concept is actually pretty elegant.

The transformer has two windings:

Primary winding

Secondary winding

When alternating current flows through the primary side, it creates a magnetic field inside the transformer core. That magnetic field then induces voltage in the secondary winding.

The voltage changes depending on the turns ratio.

Basically, more turns usually mean higher voltage.

A step-down transformer might convert:

11kV to 415V

33kV to 400V

132kV to 11kV

Meanwhile, a step-up transformer does the opposite and increases voltage for transmission purposes.

Here's the thing people sometimes overlook: transmitting electricity at higher voltage reduces current.

And lower current means lower transmission losses.

That's one of the main reasons utility companies use high-voltage transformers everywhere across the grid.

For example, electricity generated at a power plant may initially be around:

11kV

13.8kV

15kV

Then transformers step it up to:

132kV

220kV

400kV

for long-distance transmission.

Closer to homes and businesses, other transformers step the voltage back down into usable levels.

It's kind of like a voltage relay race happening continuously across the entire electrical network.

Some voltage conversions appear over and over in industrial and utility systems.

Here are a few common examples:

These transformer ratings are carefully selected based on load demand, system design, and local grid standards.

Not every country uses the exact same voltage levels either, which can confuse newcomers a little.

Once you start dealing with medium or high voltage transformers, insulation suddenly becomes a very big deal.

At low voltage, standard insulation methods are often enough. But high-voltage transformers need much stronger dielectric protection.

That's why many power transformers use:

Mineral insulating oil

Pressboard insulation

Epoxy resin systems

SF6-insulated switchgear in some installations

Even a relatively small insulation failure can lead to arcing, overheating, or catastrophic transformer damage.

And honestly, repairing large transformers is neither cheap nor quick.

Transformer nameplates usually show voltage ratings in both kV and V.

For example:

A technician must clearly understand the "kV to V" relationship before installation or testing begins.

Mixing up 11kV and 11V obviously sounds impossible, but incorrect assumptions about voltage classes do happen in real projects.

Especially when documentation is rushed. Which, unfortunately, happens more often than people admit.

The phrase "kV to V" may seem like a simple electrical conversion, but in transformer systems, it represents something much bigger. It connects power generation, transmission, distribution, and everyday electricity use into one continuous network.

Transformers make these voltage conversions possible safely and efficiently. Whether it's stepping 220kV down for a city grid or converting 11kV into usable building power, the process is absolutely essential to modern infrastructure.

And once you start working with transformers regularly, you realize pretty quickly that understanding voltage levels isn't just theory. It's part of the job every single day.
