In today's power systems, the 110kV oil-immersed three-phase double-winding transformer with unexcited voltage regulation is everywhere. It's one of those solid, no-frills pieces of equipment that just gets the job done reliably and affordably.
Design and How It Actually Works

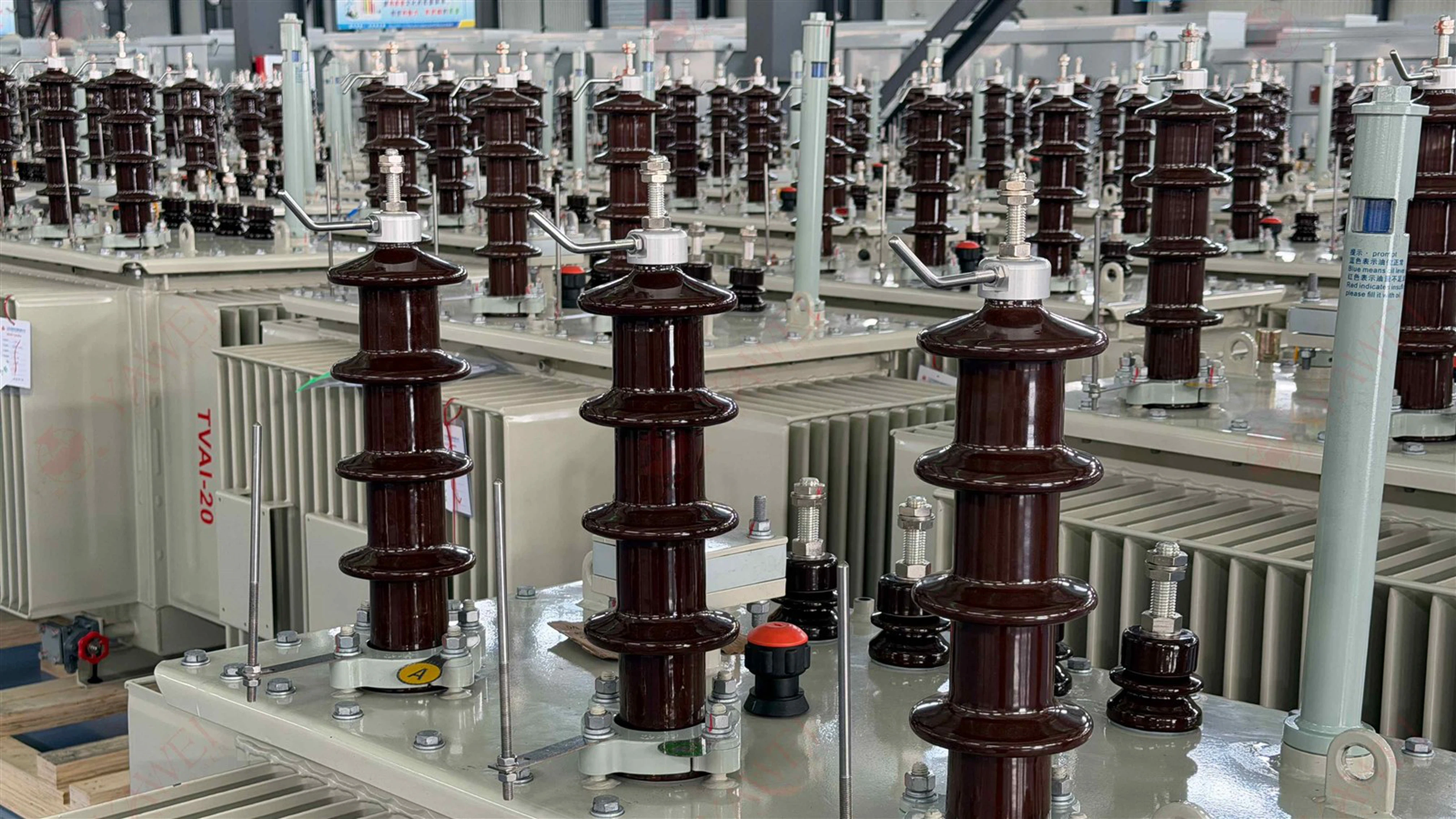

These transformers have a classic three-phase setup with two windings - high voltage and low voltage - all sitting in a tank full of mineral oil. The oil takes care of insulation and cooling, whether through natural circulation or with a bit of fan help. Inside, you'll find a core made from high-grade grain-oriented silicon steel that helps cut down on losses and keeps the humming noise to a minimum.

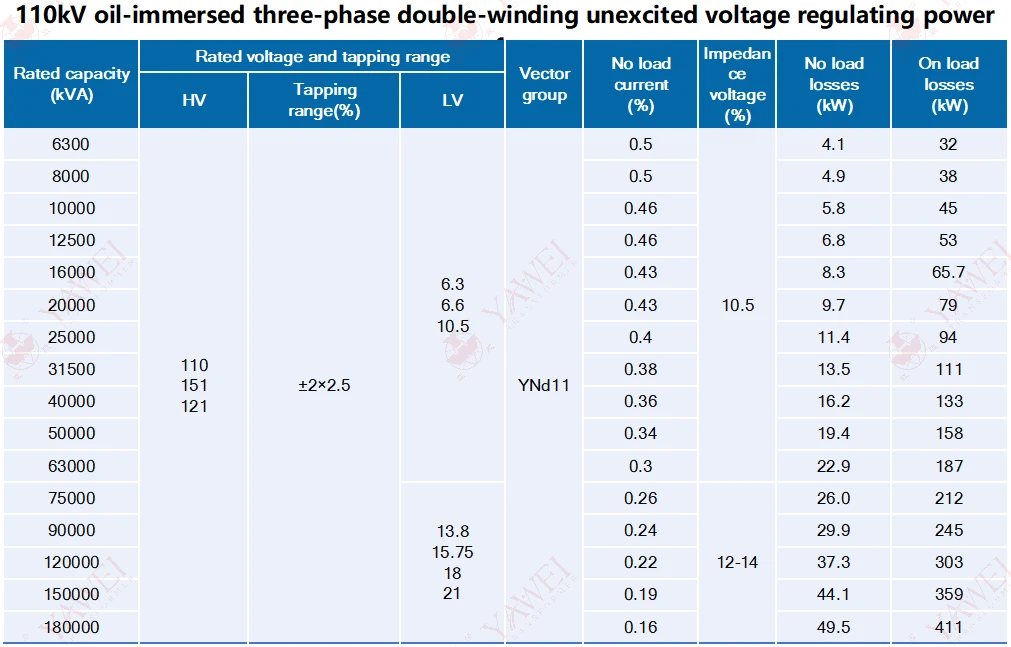

The "unexcited" part means you can only change the taps when the transformer is switched off. Typical tap ranges are around ±2×2.5% or ±3×2.5%. It's simpler and cheaper than the fancy on-load versions, which is why a lot of utilities still prefer it. You'll commonly see voltage ratios like 110/35kV, 110/10.5kV, or 110/6.3kV, with capacities ranging from about 6.3MVA to 63MVA.
Where These Transformers Are Used
You'll spot them most often in 110kV substations, stepping down transmission voltage to supply towns, neighborhoods, and smaller industrial zones.
They're also a favorite in heavy industry and mining operations. When a big plant or mine needs dependable power in rough conditions - dust, moisture, big temperature swings - these units hold up really well.
Power plants, including smaller thermal, hydro, and renewable projects like wind and solar farms, use them to connect generators to the 110kV grid. You'll even find them working hard in railway traction substations, helping keep high-speed and electrified trains running smoothly.
Whenever the grid needs expanding or upgrading, these transformers are usually high on the list because they're standardized, straightforward to install, and have a long track record.
Why People Like Them
Cost is a huge plus. Without the complicated on-load tap changer, they're cheaper to buy and maintain. They're also very reliable - plenty of them keep running strong for over 30 years. Newer low-loss models (think S11 or S13 series) are quite efficient and can handle short circuits without breaking a sweat.
They adapt well to different climates and deliver solid performance even when loads go up and down.
Day-to-Day Operation and Care
Installation is pretty standard: good foundation, decent ventilation, and enough space around it. Operators regularly check oil temperature, oil level, and dissolved gas levels. Routine oil sampling and insulation testing are just part of normal maintenance.
Since you have to shut it down to adjust the taps, some planning ahead is needed. But that's usually a fair trade-off for the simplicity. Safety features like Buchholz relays and pressure relief valves help protect against problems. These units generally meet IEC 60076 and local standards.
Final Thoughts
At the end of the day, the 110kV oil-immersed double-winding transformer with off-circuit regulation is still a go-to choice for many power systems. It might not be the most high-tech option, but it's practical, dependable, and gets the work done year after year. As electricity demand grows and more renewables join the grid, these honest, hard-working transformers will keep playing a key role in delivering stable power.
