In today's energy landscape, the high voltage transformer stands as a cornerstone of power transmission and distribution systems. These critical assets step up voltage for efficient long-distance transmission or step it down for safe local use, minimizing losses while ensuring grid stability. As global electricity demand grows-driven by urbanization, industrial expansion, and renewable energy integration-selecting the right high voltage transformer has never been more important.

Jiangsu Yawei Transformer Co., Ltd., a professional manufacturer with over three decades of experience, specializes in high voltage transformers designed to meet the rigorous demands of utility, industrial, and infrastructure projects worldwide.

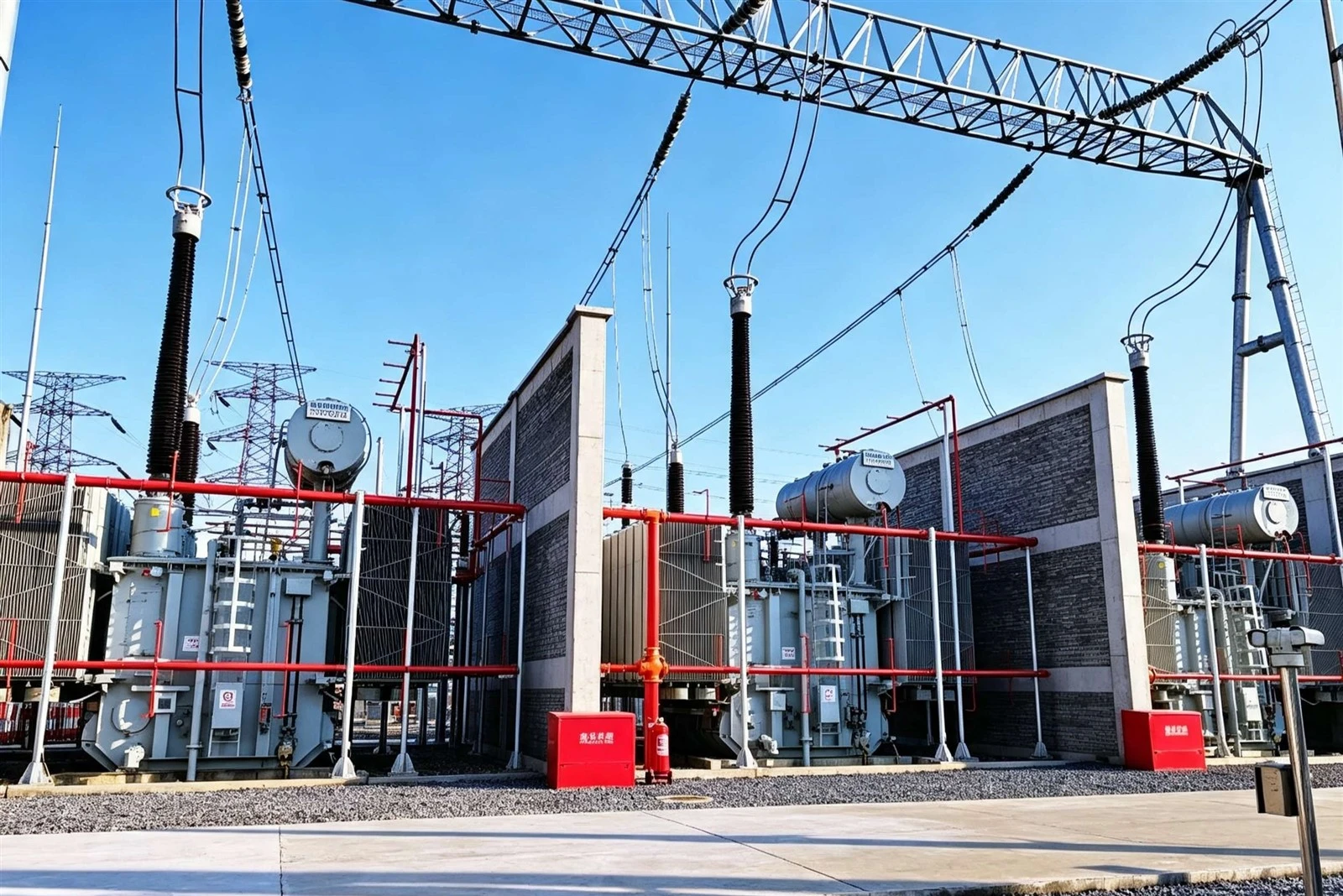

A high voltage transformer typically operates at voltages of 69 kV and above, with many designs reaching 110 kV, 220 kV, 330 kV, 400 kV, and up to 500 kV or higher. These units handle large power capacities, often ranging from tens to over 1,000 MVA, making them essential for transmission substations, power plants, and large-scale industrial facilities.

Unlike distribution transformers that serve end-users at lower voltages, high voltage transformers form the backbone of the grid. They enable efficient bulk power transfer, reduce transmission losses through elevated voltages, and support interconnection between regional networks.

Key design features include robust insulation systems (often oil-paper), advanced cooling methods (ONAN, ONAF, OFAF, or OFWF), and precise impedance control to manage short-circuit forces and system stability.

High voltage transformers serve diverse and demanding roles:

Utility Transmission Networks: Stepping voltage up from generation sites for long-distance lines and stepping it down at receiving substations.

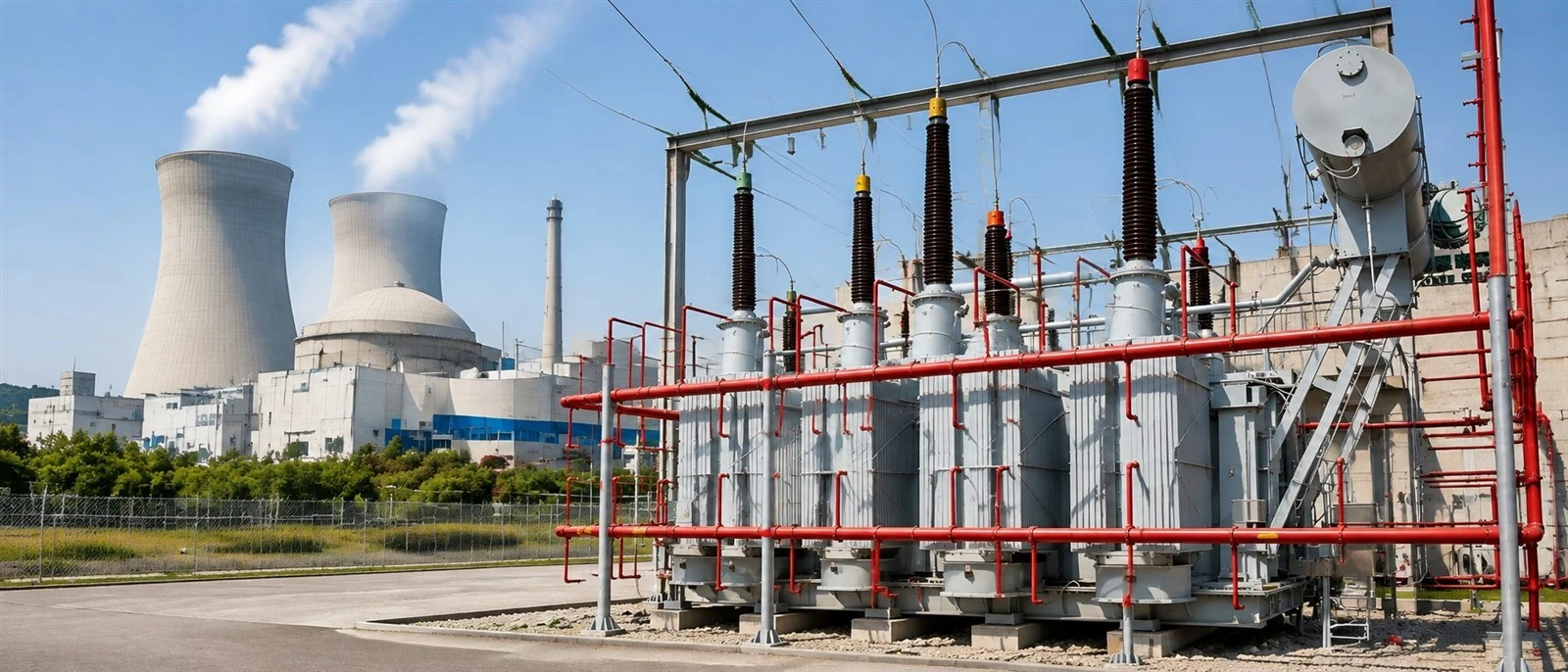

Power Generation: Generator step-up (GSU) transformers that boost output from turbines or generators to transmission levels.

Renewable Energy Integration: Connecting large wind farms, solar plants, and energy storage systems to the high-voltage grid.

Industrial and Data Center Loads: Supplying reliable power to steel mills, mining operations, chemical plants, and high-density computing facilities.

Cross-Border and Grid Interconnection Projects: Supporting international power exchange and regional grid reinforcement.

In each case, performance under continuous load, transient conditions, and environmental stresses determines long-term reliability and total cost of ownership.

Today's high voltage transformers deliver measurable benefits when engineered correctly:

Energy Efficiency: Optimized core and winding designs minimize no-load and load losses, reducing operating costs and environmental impact.

High Reliability: Advanced insulation coordination, rigorous testing, and quality materials ensure decades of service with low failure rates.

Customization: Voltage ratios, capacity, impedance, noise levels, and accessories can be tailored to specific project requirements and local standards.

Compliance with Global Standards: Designs meeting IEEE, ANSI, IEC, DOE, CSA, UL, and other certifications facilitate international deployment.

Support for Grid Modernization: Compatibility with smart-grid features, renewable infeed, and higher short-circuit levels prepares systems for future demands.

Vertical integration further enhances quality and lead times. Manufacturers that produce key components-such as enameled wire, tanks, radiators, and clamps-in-house maintain tighter control over materials and processes.

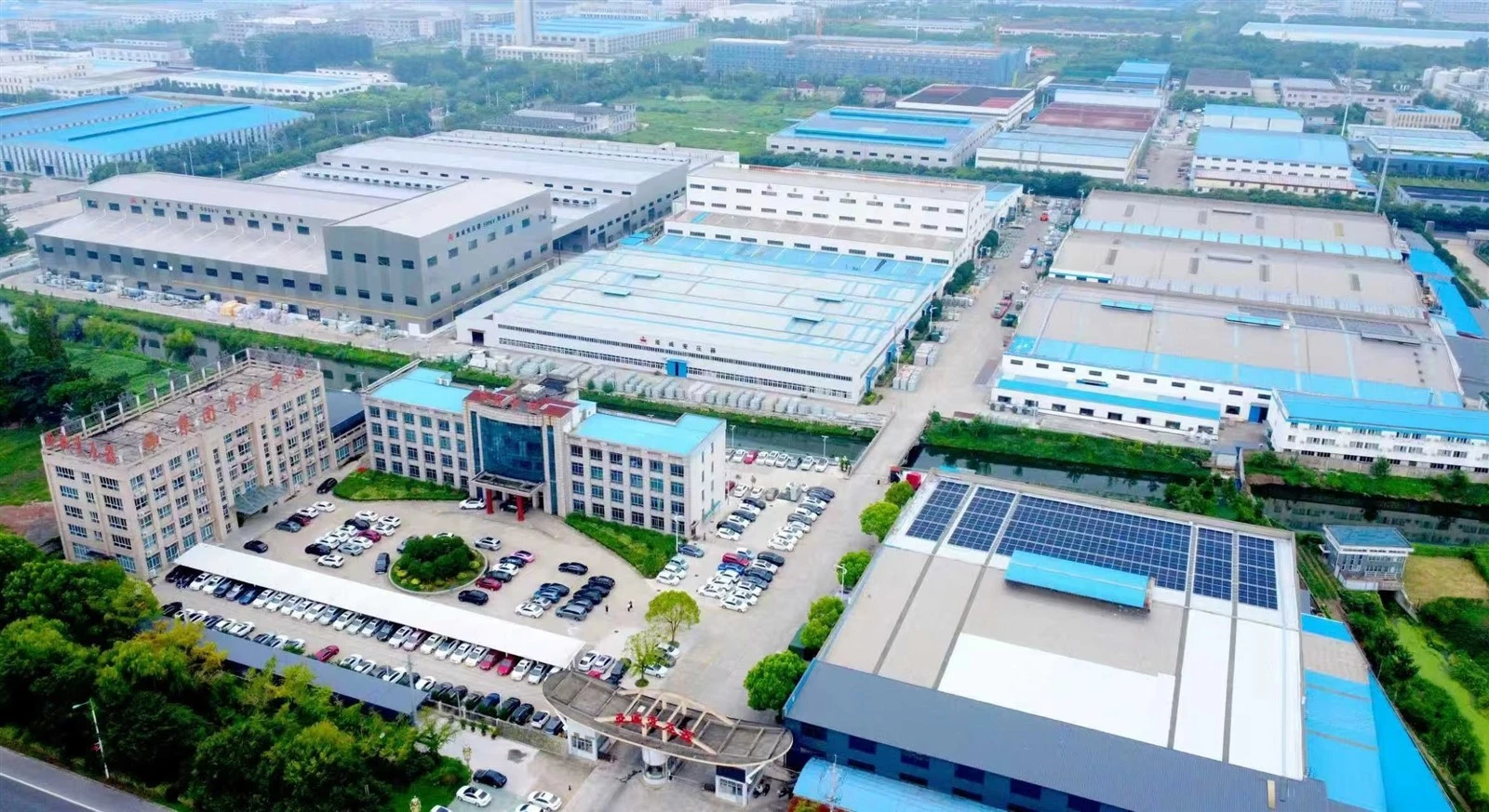

Established in 1992 and based in Hai'an, Jiangsu Province, China, Jiangsu Yawei Transformer Co., Ltd. has grown into a major producer of power transformers up to 500 kV. With more than 1,200 employees, including over 180 engineers and technical staff, and facilities spanning approximately 240,000 square meters, the company maintains strong manufacturing capacity. Six specialized branch factories support production of critical accessories, enabling consistent quality and responsive delivery.

Yawei high voltage transformers are engineered to comply with major international standards, including IEEE, ANSI, DOE, CSA, UL, and IEC. The company accepts OEM and ODM orders and provides a minimum two-year warranty on its products. Recent achievements include high-volume deliveries of main transformers and successful projects involving specialized units for demanding applications such as large data centers and utility expansions.

Whether the requirement is a standard design or a fully customized high voltage transformer, Yawei's R&D and production teams focus on performance, safety, and cost-effectiveness. Short delivery cycles for many models help project developers meet tight schedules without compromising quality.

When evaluating a high voltage transformer, consider these factors:

Voltage and Capacity Ratings - Match primary and secondary voltages and MVA rating to system needs, with appropriate overload and short-circuit margins.

Cooling and Installation Environment - Choose the cooling method suited to ambient conditions, altitude, and space constraints.

Losses and Efficiency - Review guaranteed no-load and load losses against energy cost and efficiency regulations.

Testing and Certification - Confirm full-type and routine testing, including impulse, temperature-rise, and short-circuit withstand capability.

Manufacturer Track Record - Prioritize suppliers with proven export experience, vertical integration, and responsive after-sales support.

Partnering with an experienced manufacturer reduces risk and ensures the transformer will perform reliably over its service life.

A well-designed high voltage transformer is a long-term investment in grid reliability, energy efficiency, and operational continuity. As power systems evolve to accommodate higher renewable penetration and growing demand, the need for robust, standards-compliant equipment continues to rise.

Jiangsu Yawei Transformer Co., Ltd. combines decades of manufacturing expertise, international-standard engineering, and flexible customization capabilities to deliver high voltage transformers that meet the needs of utilities, industrial users, and project developers around the world. For projects requiring dependable performance at 69 kV and above, Yawei offers a proven solution backed by quality control, competitive lead times, and global support.

Contact Yawei Transformer today to discuss your high voltage transformer requirements and discover how tailored engineering can strengthen your power infrastructure.

Contact now

Q: How soon can you delivery the transformer?

A: It depends on the quantity and capacity of the transformer, normally within one month since the date drawing confirmed by buyer.

Q: How long can you provide the quality warranty?

A: 24 months since the date transformer operated.

Q: What payment method do you accept?

A: T/T (wire transfer) preferred, L/C both accepted.
