750kV 260MVA~380MVA Oil-Immersed Single-Phase Double-Winding Power Transformer
Between the power plant and the toaster in your kitchen sits a silent giant. Picture a machine as tall as a two-story building and weighing as much as 60 African elephants. This massive 750kV power transformer is one of the unsung heroes keeping our modern world running.

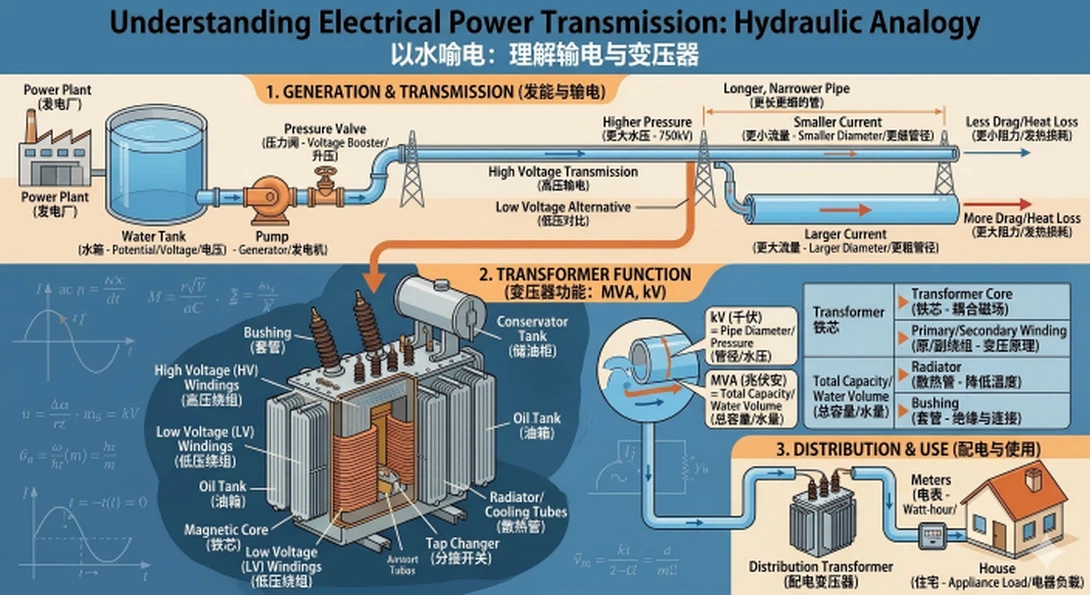

You know how power drops when you run a long extension cord across the yard? The same thing happens on a massive scale across hundreds of miles of transmission lines. That's why we use ultra-high voltage like 750kV - it's basically a high-pressure fire hose for electricity. It pushes energy efficiently over long distances without losing most of it as heat.
At the heart of this system is the 750kV 260–380MVA oil-immersed single-phase double-winding power transformer - a true beast that helps prevent widespread blackouts.
Why 750kV Feels Like the "Fire Hose" of the Power World
Electricity behaves a lot like water under pressure. To move it hundreds of miles without huge losses, you need to crank up the voltage to 750 kilovolts. At lower voltages, the current fights against the wires and turns into wasted heat before it ever reaches your city.
The transformer's capacity is measured in MVA (Megavolt-Amperes). Think of it as the width of that fire hose - it tells you how much power can safely flow through without melting everything.
The Single-Phase Secret: Three Smaller Giants Instead of One Monster
Building one gigantic three-phase transformer at this scale would be a logistical nightmare. So engineers split the job into three separate single-phase units. This approach makes everything much more practical.
The benefits are pretty clear:
Each unit is small enough to transport by rail.
If one fails, you only lose a third of the capacity.
Maintenance is easier - you can take one offline while the others keep working.
Inside each tank, you'll find a double-winding design: two big coils sitting close but never touching. Power in one coil creates a magnetic field that induces voltage in the other. It's a clever, contactless way to transfer energy while carefully controlling impedance to avoid dangerous surges.
Oil-Immersed Cooling: The Liquid Armor That Prevents Meltdown
All that massive power flowing through the transformer creates a huge amount of heat - basically like running a giant electrical oven at full power nonstop. At this scale, regular air cooling just isn't enough. If you didn't do something smart, the heat would build up fast and wreck the windings.
So, these big 750kV transformers are filled with thousands of gallons of specially refined mineral oil (we're talking 10,000 to 30,000 gallons or even more). This oil pulls double duty: it works as an excellent insulator to keep the extremely high voltage from arcing or breaking down, and it acts as a highly effective coolant that pulls heat away from the coils and core.
The cooling system is pretty clever and completely passive. When the oil around the windings gets hot, it becomes lighter and rises naturally. It then flows out into those big external radiators, where it cools off by dumping heat into the air. Once it cools down, it gets heavier and sinks back into the tank. This creates a continuous loop with no pumps needed - simple but surprisingly effective.
Even better, this mineral oil is incredibly stable. If you maintain it properly, it can last 20 to 40 years (sometimes even longer), handling wild temperature swings and heavy electrical stress without breaking down.
Digital Doctors: How They Keep These Giants Healthy
Since you can't simply open up a live 750kV transformer for a quick inspection - it's extremely dangerous and practically impossible while it's energized - engineers rely on a clever diagnostic method often called the "blood test" for transformers.
This technique is known as Dissolved Gas Analysis (DGA). Just like doctors draw blood to check for hidden health issues in the human body, technicians carefully sample the insulating oil inside the transformer. By analyzing the tiny amounts of gases dissolved in that oil, they can detect early warning signs long before any major problem appears on the surface.
The Invisible Backbone of Modern Life
These 750kV transformers are the quiet foundation of our power grid. They efficiently move electricity from distant power plants (and increasingly renewable farms) to where we actually need it, with minimal losses.
Without these silent giants, our modern electrified world simply wouldn't work.
