Why Do Power Pole Transformers Explode?

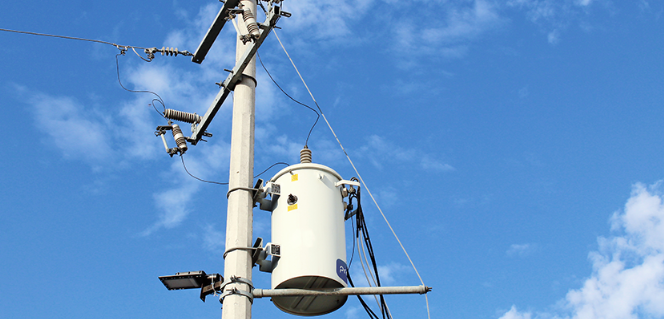

Telephone pole transformer plays an important part of the power distribution network. They step down high voltages coming from power lines to lower ones suitable for domestic and commercial use. And this voltage reduction is safe as well as compatible to the electric devices.

And without transformers homes and businesses wouldn't get power safely. High voltage power line originally transmits power from power station efficiently over a long distance. The telephone pole transformers adjust it for local consumption.

By changing voltages like this they do help keep from having losses too: Low Voltage means it is less risky for something like catching a fire or hurting equipment: This change makes electricity go better and arrive better.

telephone pole transformers are part of the larger infrastructure needed for power distribution. The important part of it being:

From a high to a low voltage conversion

Minimize Power Lines Energy Loss

Ensuring electrical safety in all regions

And also they reduce the stress on the grid from high demands. They can be trusted to keep working steadily so that there is no problem with electric power being given out even when lots of things need using it at once. so they improve the efficiency and the reliability of the power distributing system, this is really critical for both urban and countryside electricity.

Telephone pole transformers consist of a few key elements. Each plays an integral role in safely and efficiently converting it. The main parts include cores and windings as well as insulating materials.

The core: the core generally consists of stacked laminae of iron, which are good conductors of magnetic flux. It is very important for transformer function in changing voltage. This core is to reduce the energy losses in the conversion process.

Windings made of copper / Aluminum wires that are coiled around the core. These windings are what transforms voltage levels. It can make transformers to deal with incoming high voltage as well as the transformer output lower voltage.

Insulation material is good for electrical faults and safety. Transformer keeps the parts safe from potential electric sparks, Transformer works well. Insulating is what is done so transformer can last long and work well every place.

Additional structural components include:

Bushing to make the electrical connection

Tap changers adjust voltage

Protection house for prevention of weather and physical damage

Together they make a strong system. Electricity will be guaranteed to be handed over by Power Lines and its management will be smooth in this system. These must be built and designed correctly in order for telephone pole transformers to function adequately.

if you want to know more about the components in the transformers, please click here!

345df7356896c0bd6e3d5c5b20e552e3 Transformers on power poles can explode for a number of reasons.

First, the oil inside the transformer is a flammable liquid, and if the transformer is overloaded or has a ride-through failure, the oil may become too hot. In this case, the oil will rapidly decompose and vaporize and flash fire, which will cause the pressure inside the transformer to increase dramatically, causing the shell to burst and an explosion to occur.

Secondly, the insulating materials used in power transformers may reduce insulation strength due to aging, deterioration or water ingress, which may lead to short circuits and fires. In addition, if the sealing of the transformer casing is poor or the insulation distance is insufficient, the insulation breakdown may occur under the action of overvoltage and cause a fire.

In addition, water ingress into the transformer casing due to poor sealing may cause the casing to flashover, which in turn may lead to an explosion and fire. At the same time, poor contact between the on-load tap-changer and the winding connection may generate high temperatures, which may also cause a fire.

In summary, the causes of transformer explosions on utility poles may include a variety of factors such as high oil temperatures, damage to insulating materials, poor casing sealing, and poor contact. To prevent transformer explosions, transformers need to be inspected and maintained regularly to ensure proper operation and that any potential safety hazards are addressed in a timely manner.

Model	S11-500KVA-22.9/0.4KV
Rated Power	500KVA
Primary Voltage(V)	22900
Secondary Voltage(V)	400
Insulation Level(KV) H.V BIL	125
Frequency	50Hz
Vector Group	Dyn11
Winding Material	Copper
Insulation Oil	Mineral Oil
Temperature Rise	55℃
Load loss at rated voltage	≤6400W
No load loss	≤860W
Impedance	4%
Altitude	≤1000m
